SCG

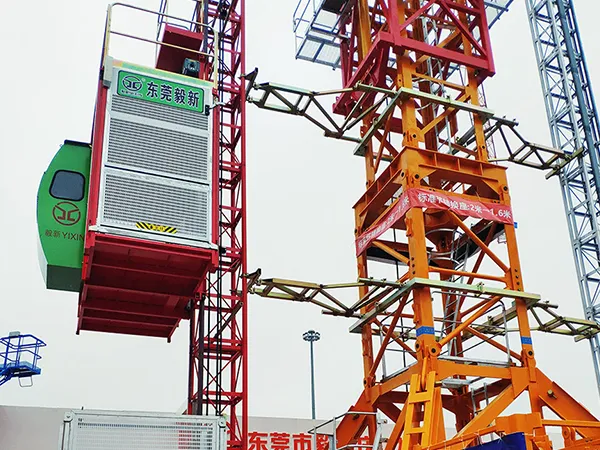

Smart Control Construction Hoist

Personnel & material hoist with smart control system

Ultimate Solution for Efficient Vertical Transportation
Our SCG Smart Control Construction Hoist is meant to transform your handling of vertical mobility on building sites. Your staff can convey signals with this innovative hoist by simply using floor buttons or cabin selectors; the hoist will instantly react and gently stop at the specified floor. It's rather handy for your staff to move in and out since the doors even open and close on their own.

This is about changing your workflow rather than only convenience. Automating these tasks helps the SCG hoist cut operating expenses and labor requirements while simultaneously increasing the effectiveness of your project. High safety standards and environmentally sustainable operations can help you to feel good about the effects on your bottom line and the surroundings.

Designed using strict national safety criteria and high-strength steel, the SCG Smart Control Construction Hoist is a game-changer for contemporary building rather than only a tool. Take your project to the next level with the dependability and creativity you desire!

Inquiry

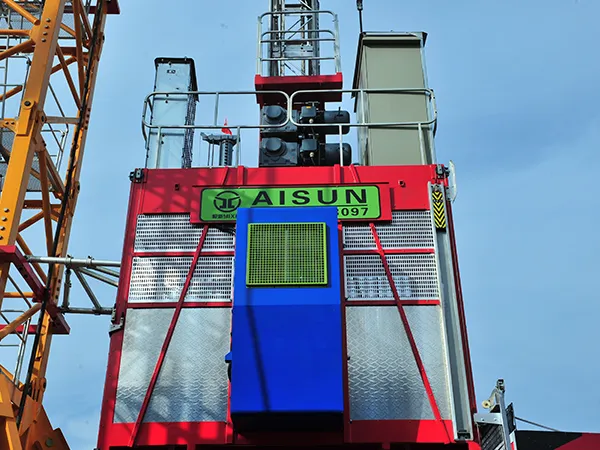

Smart Control Construction Hoist
Smart Control Construction Hoist
Specifications
Model SCG200DZN SCG200GZN SCG200ZZN-1 SCG200ZZN-2
Max. Lifting Height (m) 550
Rated Payload Capacity (kg) 2×2000
Rated Load Capacity During Section Assembly (kg) 2×1000
Rated Lifting Speed (m/min) 0~46 0~96 0~55 0~63
Cage Size (L×W×H) (m) 3.2×1.5×2.3
Motor Power (kW) 2×2×11/18.5 (50/87HZ) 2×3×18.5/31 (50/87HZ) 2×2×13/22 (50/87HZ) 2×3×11/18.5 (50/87HZ)
Mast Section Size (L×W×H) (mm) 650×650×1508
Hoist Electrification Cable trolley, cable festoon system
Safety Device SAJ40-1.2A (0.95m/s) SAJ60-2.0 (1.95m/s) SAJ50-1.4 (1.25m/s) SAJ50-1.4 (1.35m/s)
Power Supply 380V(±10%)/50HZ
Features
    1. Split Electrical Control System

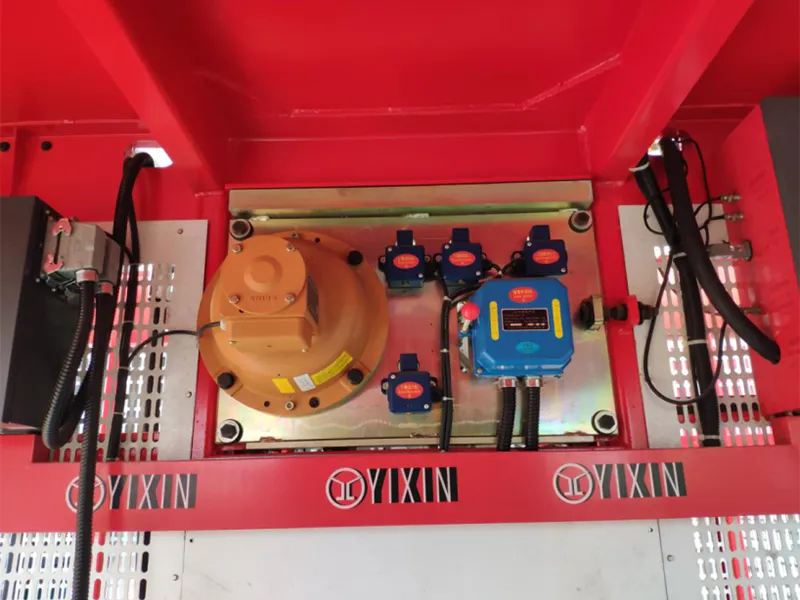

      Split Electrical Control System

      Aviation sockets are used in the cabin's electrical control system, therefore saving further wiring requirements. This design, with choices for several smart features, streamlines installation and maintenance.

    1. Dual-Door Safety

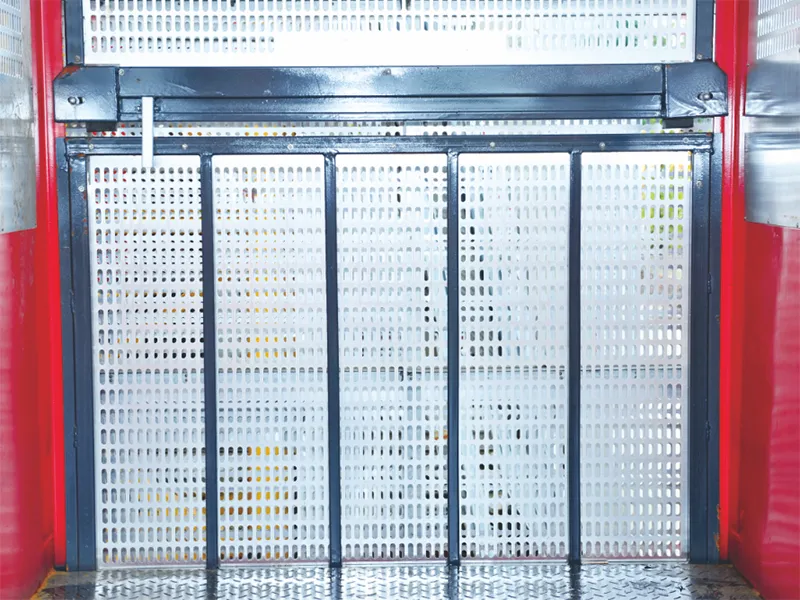

      Dual-Door Safety

      Designed to prevent collisions with site carts and other equipment, the hoist cabin boasts a lower door with dual-door safety capability.

    1. Base Enclosure

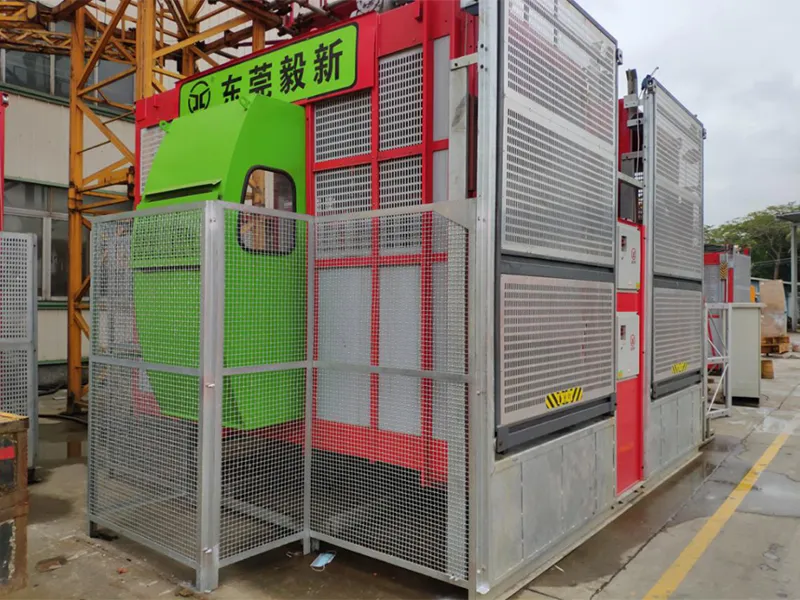

      Base Enclosure

      The base enclosure construction consists of a strong, aesthetically beautiful steel wire mesh fence. Excellent corrosion resistance comes from the hot-dip galvanized material used around the periphery.

    1. Openable Cabin Doors

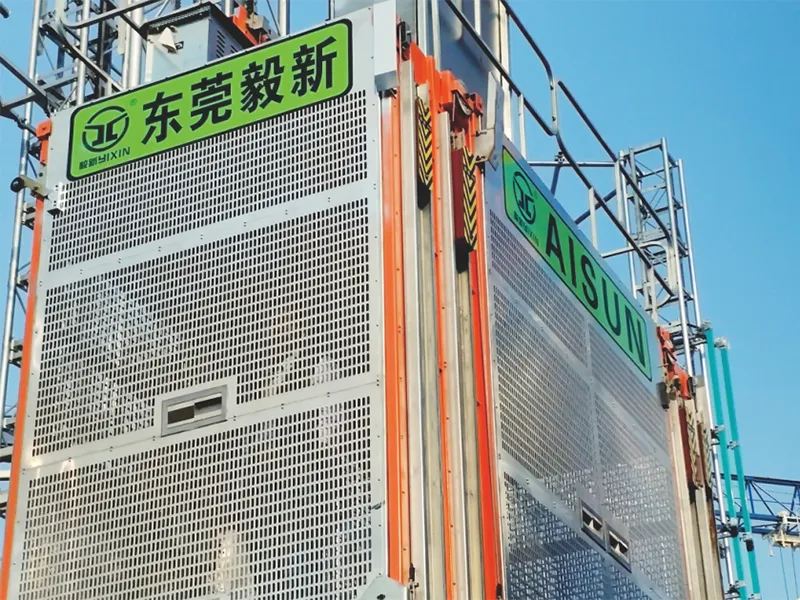

      Openable Cabin Doors

      Three openable doors on the hoist cabin give easy access from all sides.

    1. Panel for Touchscreen Control

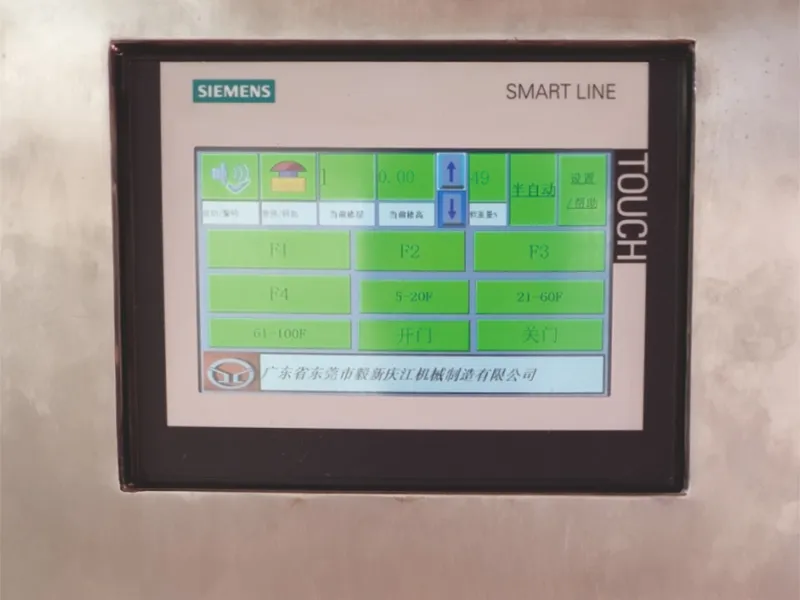

      Panel for Touchscreen Control

      A touchscreen display on the control panel indicates the operational state of the elevator together with any defect information. By means of the panel, maintenance staff can quickly spot and fix problems.

Other types in this hoists

    1. Material Hoist
      Material Hoist
      Read More

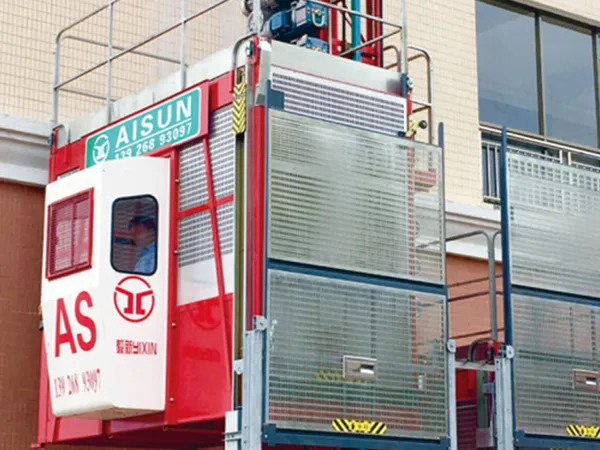

    1. Goods & Passenger Hoist
